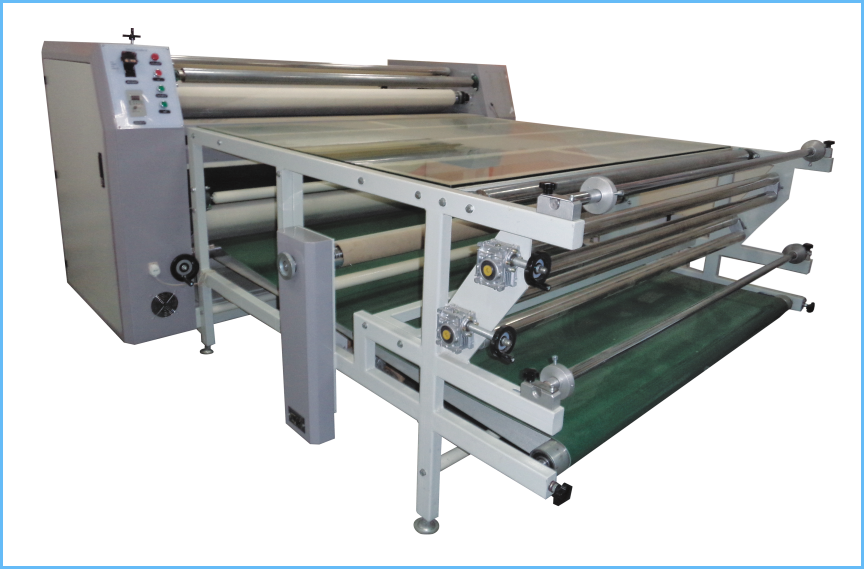

Hybrid Sublimation Transfer Machine

The cylinder is heated by heating element in an open oil bath. The temperature of the cylinder is set by the touch screen and regulated electronically with tolerance ±1°C. The temperature control is equipped with an alarm system and a limitation system of maximum temperature (230°C). NOMEX felt with tension adjustment system and automatic felt-centering device.

Roller Width Dia          200          420          600

Belt Size [cm]          120          190          215

[inch]          46          73          84

Working Width [cm]          115          165          185

[inch]          44          64          72

Power Installed [Kw]          12 KW          18 KW          33 KW

Speed          0.5-0.75 M/MIN.          1.5-2.5 M/MIN.          4-5 M/MIN.
